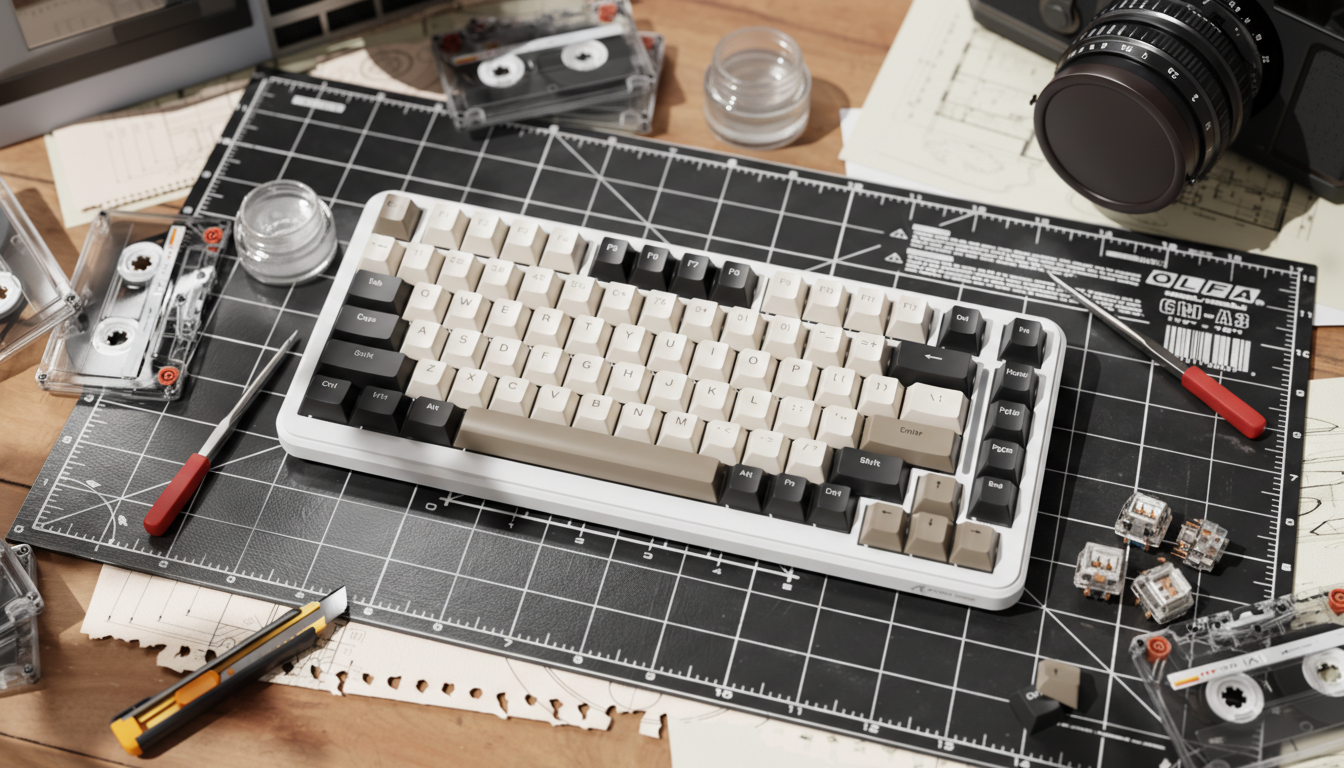

The 100-Cycle Limit: Navigating Hot-Swap Socket Durability

The Reality of the 100-Cycle Rating

In the world of value-driven mechanical keyboards, the "hot-swap" feature is often the primary selling point for DIY enthusiasts. However, a technical specification frequently buried in datasheets—the 100-cycle limit—often causes unnecessary alarm or, conversely, dangerous overconfidence. On our repair benches, we have seen that this number is rarely a hard expiration date, but rather a benchmark for mechanical stress under specific laboratory conditions.

According to the Kailh hot-swap socket datasheet, a "cycle" is defined as one full mating and unmating (insertion and removal) of a switch. This means that if you install a set of switches and leave them for three years, you have consumed exactly zero cycles of the socket’s rated mechanical life. The 100-cycle rating is a stress test of the internal leaf spring's ability to maintain a contact resistance of less than 20mΩ.

Logic Summary: Our analysis of socket longevity assumes a deterministic model where mechanical wear is cumulative. We distinguish between "static residence" (time spent installed) and "dynamic action" (the act of swapping).

Parameter	Estimated Range	Unit	Rationale
Rated Cycles	100	Count	Manufacturer lab benchmark for spring tension
Real-World Limit	50 - 150	Count	Variance due to user alignment and pin thickness
Insertion Force	30 - 55	N	Standard MX-compatible switch tolerances
Contact Resistance	< 100	mΩ	Threshold for signal integrity at 1000Hz+
Lateral Stress Tolerance	< 1.0	mm	Maximum offset before permanent socket deformation

The Physics of Failure: Beyond the Leaf Spring

Common community wisdom suggests that the leaf spring inside the socket is the first thing to fail. In our experience, specifically when auditing budget-tier PCBs, the primary failure point is actually the solder joint anchoring the socket to the PCB.

1. Solder Fatigue and Brittle Alloys

Budget-oriented boards often prioritize BOM (Bill of Materials) cost-savings. This frequently results in the use of lower-temperature solder alloys or minimal solder paste volume. These joints are inherently more brittle. Every time you press a switch into the socket, you are not just engaging a spring; you are applying downward and lateral force to the PCB pads. Over time, these micro-stresses lead to "pad lifting" or hairline fractures in the solder.

2. The "Specification Credibility Gap"

While newer 2nd-generation sockets from manufacturers like Kailh or Gateron claim durability in the "tens of thousands" of cycles, we must treat these as laboratory extrapolations. According to PCWorld's guide on hot-swap keyboards, the jump in durability is often due to improved Surface-Mount Device (SMD) designs. However, these SMD sockets require significantly more precise manufacturing. If the pick-and-place machine is slightly off, or the reflow oven temperature isn't perfectly profiled, the socket becomes a ticking time bomb for the end-user.

3. Pin Oxidation and Friction

A non-obvious factor in socket wear is the condition of the switch pins. Switches with thicker pins or those that have developed a layer of oxidation require significantly more force to insert. This increased friction translates directly into lateral stress on the PCB pads. Experienced builders often notice that a "mushy" or silent insertion—rather than a distinct, tactile 'click'—is a warning sign that the pins are scraping the socket walls, accelerating mechanical wear.

High-Performance Implications: The 8000Hz (8K) Factor

For gamers utilizing high-specification peripherals, the physical integrity of the hot-swap socket is not just about longevity; it is a performance bottleneck. As outlined in the Global Gaming Peripherals Industry Whitepaper (2026), modern high-performance boards are moving toward 8000Hz (8K) polling rates.

At an 8000Hz polling rate, the system expects a data packet every 0.125ms. In this environment, signal jitter caused by a loose or oxidized socket connection can lead to dropped inputs or "chatter" (double-typing). While a 1000Hz board might tolerate a slight increase in contact resistance, an 8K board requires near-perfect electrical continuity to maintain its competitive edge.

Technical Note (8K Stability):

• Polling Interval: 0.125ms (1 / 8000).
• The IRQ Bottleneck: 8K polling stresses CPU interrupt processing. Poor socket contact can cause "noisy" signals that force the CPU to work harder to filter out chatter, potentially increasing system latency.
• USB Topology: For 8K performance, always use direct motherboard ports. USB hubs introduce shared bandwidth issues that exacerbate the problems caused by aging sockets.

Expert Maintenance: Extending the 100-Cycle Limit

If you are working with a value-tier board, you don't have to accept a short lifespan. We recommend several heuristics to protect your PCB.

The "Wiggle Test"

After every 5–10 switch swaps, perform a gentle wiggle test. With a switch installed, gently rock it back and forth. If you detect any movement in the socket itself (not just the switch housing), the solder joints are likely beginning to fail. This is your cue to stop swapping or to reinforce the joints with a fresh bead of solder.

Lubrication and Cleaning

To reduce the friction that causes lateral stress, consider applying a tiny drop of DeoxIT Fader Lube to the switch pins every 15–20 cycles. This reduces oxidation and friction, making the insertion smoother and preserving the elasticity of the internal leaf spring.

Managing Pin Alignment

The most common cause of catastrophic socket failure is a bent pin. If a pin is even slightly misaligned, it will not enter the leaf spring. Instead, it will press against the plastic housing of the socket, pushing the entire component away from the PCB. Always inspect your switches before insertion; if you feel resistance, stop immediately.

SMD vs. Through-Hole: The Repairability Trade-off

The evolution from 1st-generation sockets to more durable 2nd-generation designs has introduced a hidden trade-off in repairability.

According to MorePCB's 2026 Keyboard Guide, while SMD sockets are technically superior in durability, they are far more difficult for the average DIYer to fix if a pad is ripped off. This creates a paradox where the "better" technology might actually lead to a shorter total device lifespan if the user lacks advanced soldering skills.

Strategic Selection for the Value Enthusiast

For the value-oriented gamer, the goal isn't necessarily to find the keyboard with the highest rated cycles, but to find one that allows for sustainable maintenance.

1. Prioritize Transparency: Look for brands that are honest about using standard sockets rather than making "infinite life" claims without data.
2. Budget for Longevity: If you plan to swap switches weekly, understand that a budget PCB is a consumable item. You may eventually need to upgrade to magnetic switches or higher-end PCBs that use reinforced socket designs.
3. Use Proper Tools: A high-quality switch puller that applies even vertical pressure is non-negotiable. Cheap, thin metal pullers often slip, causing you to pull the switch at an angle, which is the fastest way to destroy a socket.

By understanding the mechanical realities of the 100-cycle limit, you can move from being a casual user to an expert maintainer. The key to value isn't just the initial price; it's the ability to keep that hardware running at peak performance for years to come.

This article is for informational purposes only. Modifying or repairing your keyboard may void your warranty. Always disconnect your peripheral from the power source before performing maintenance.
