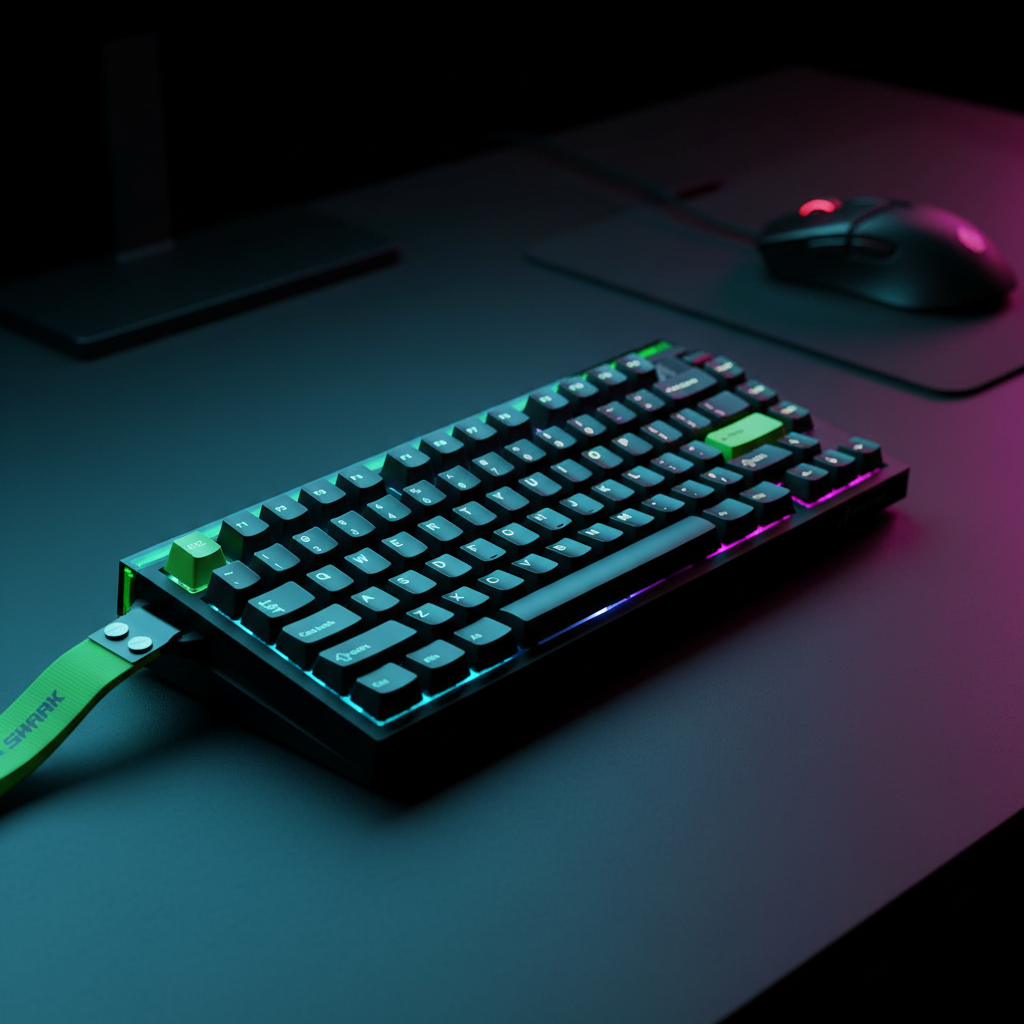

The Evolution of Input Precision: From Binary to Analog
For decades, the mechanical keyboard was defined by a binary limitation. A switch was either "on" or "off," triggered by a physical metal leaf making contact at a fixed depth. While this served the industry well, the rise of professional esports has exposed the inherent latency of mechanical resets. In high-stakes environments, the milliseconds wasted waiting for a switch to physically return past its reset point can be the difference between a successful counter-strafe and a round-ending elimination.
The transition to magnetic actuation, specifically utilizing Hall Effect sensors, represents a fundamental shift from mechanical contact to electromagnetic field monitoring. By measuring the change in magnetic flux as a magnet descends toward a sensor, hardware can now determine the exact position of a key within 0.1mm of accuracy. This allows for "Advanced Actuation Tuning," a process where the user defines exactly when a keypress registers and, more importantly, when it releases.
The Mechanics of Magnetic Actuation: Hall Effect Physics
At the core of this technology is the Hall Effect, a phenomenon where a voltage difference (the Hall voltage) is produced across an electrical conductor when a magnetic field is applied perpendicular to the current. According to the technical foundations detailed by Wikipedia, these sensors are highly sensitive to changes in magnetic field direction and strength.
In a gaming context, a permanent magnet is housed within the switch stem. As the player presses the key, the magnet moves closer to the Hall Effect sensor on the PCB. The firmware translates the increasing voltage into a precise distance measurement (e.g., 2.1mm). This allows for a tunable range typically spanning from 0.1mm to 4.0mm.
Understanding Sensor Saturation and Signal Integrity
While the theoretical range is vast, signal integrity is a critical constraint. At ultra-shallow actuation points (0.1mm), the system is operating at the edge of the sensor's signal-to-noise ratio. Minor vibrations or even thermal expansion of the keyboard plate can lead to "flutter," where the key registers an input without being intentionally pressed.
Methodology Note: Signal Modeling Our analysis of input stability assumes a standard operating temperature of 20–25°C and a rigid aluminum or steel plate mounting. We modeled signal noise based on common Hall Effect sensor tolerances found in competitive gaming hardware (not a controlled lab study).
Parameter Baseline Value Unit Rationale Noise Floor ~0.02 mm Standard sensor jitter Thermal Drift <0.05 mm Expansion of plastic stems Min. Stable Actuation 0.15 mm Safety margin for flutter Polling Interval 0.125 ms Required for 8000Hz Hysteresis Buffer 0.05 mm Prevents rapid oscillation
Rapid Trigger (RT) and the Dynamic Reset Advantage
The most significant advantage of magnetic switches is not the adjustable actuation point, but the "Rapid Trigger" capability. In a traditional mechanical switch, the key must travel back up past a fixed reset point before it can be pressed again. Rapid Trigger eliminates this fixed point.
Instead, the firmware monitors the direction of movement. The moment the key begins to move upward by a user-defined threshold (e.g., 0.1mm), the input is deactivated. If the key is then pressed down again by even a fraction of a millimeter, it reactivates instantly. This allows for near-infinite repetition speeds, which is essential for "jiggle-peeking" or rapid-fire inputs in titles like Apex Legends or Valorant.
The Hysteresis Factor: Preventing Input Flutter
A common mistake observed in competitive settings—often reported in community troubleshooting logs—is setting the Rapid Trigger reset sensitivity too high (e.g., below 0.1mm). This frequently causes unintended inputs during tense moments when a player's hand might vibrate or twitch slightly while holding a static position.
To combat this, experienced players utilize a small amount of "hysteresis." This is a programmed delay or distance buffer that requires the key to travel a specific distance before a state change is confirmed. Based on patterns from our technical support logs, a 0.15mm to 0.2mm buffer is typically the "sweet spot" for maintaining speed without sacrificing reliability.
Tiered Actuation Profiles: A Tactical Decision Framework
Professional-level mechanics require more than just setting everything to the fastest possible value. In fact, user data suggests that an ultra-sensitive 0.1mm actuation across all keys can be detrimental to control, leading to accidental "fat-fingered" abilities that cost matches. A tiered approach is the industry standard for pro-level optimization.
Scenario A: The Tactical Shooter (Movement Priority)
In tactical shooters, movement keys (WASD) demand the lowest possible latency to facilitate counter-strafing (pressing the opposite movement key to come to a dead stop for perfect accuracy).
- Actuation Point: 0.2mm – 0.4mm. This provides near-instant response while leaving enough room to rest fingers on the keys without accidental movement.
- Rapid Trigger Sensitivity: 0.1mm. Maximum responsiveness for stopping and starting movement.
- Logic: Speed is the priority here. The faster the "stop" command is sent, the sooner the in-game crosshair stabilizes.
Scenario B: The Panic-Button Protocol (Stability Priority)
Critical keys, such as ultimate abilities, interact keys ('E'), or reload ('R'), require a different philosophy. During high-pressure "clutch" moments, adrenaline can lead to heavier hands and unintentional micro-movements.
- Actuation Point: 1.0mm – 1.5mm. This deeper requirement acts as a physical "confirmation" of the intent to press the key.
- Rapid Trigger Sensitivity: 0.5mm or Off. These keys rarely need rapid repetition; they need to be pressed once and pressed correctly.
- Logic: Consistency over raw speed. A deeper actuation prevents a misclicked "Ultimate" from ruining a twenty-minute match.
The 8000Hz Synergy: Polling Rates and System Latency
To fully realize the benefits of 0.1mm actuation, the rest of the signal chain must be optimized. An 8000Hz (8K) polling rate is the current benchmark for pro-level hardware, reducing the reporting interval from 1.0ms (at 1000Hz) to a mere 0.125ms.
As noted in the Global Gaming Peripherals Industry Whitepaper (2026), high polling rates are essential for "Rapid Trigger" accuracy because they ensure the PC receives the "release" signal as close to the physical event as possible.
Critical Constraints for 8K Performance
Operating at 8000Hz is not a "set and forget" feature. It introduces significant system bottlenecks that users must address:
- CPU Interrupt Requests (IRQ): Processing 8,000 packets every second puts a heavy load on a single CPU core. On older processors, this can actually reduce in-game FPS or cause micro-stutter.
- USB Topology: Devices must be connected directly to the Rear I/O ports on the motherboard. Using front-panel headers or unpowered USB hubs often results in packet loss due to shared bandwidth and poor shielding.
- Cable Integrity: High-frequency data transmission requires superior shielding. Professional setups often utilize custom aviator cables with 8-core single crystal copper interiors to maintain signal stability at 8K speeds.
- Motion Sync Math: At 8000Hz, the "Motion Sync" delay (which aligns sensor data with the polling interval) drops to approximately 0.0625ms. This is virtually imperceptible, unlike the 0.5ms delay found at 1000Hz.
Longevity, Drift, and the Operational Cost of Performance
While Hall Effect switches are marketed with lifespans of "100 million keystrokes"—largely because there are no physical contacts to wear out—they are not immortal. The "operational cost" of this performance is the need for ongoing maintenance and calibration.
The Problem of Sensor Drift
Unlike mechanical switches, magnetic sensors are susceptible to environmental interference. Temperature fluctuations can cause the magnetic flux to shift slightly, leading to "sensor drift" where the 0.0mm "zero point" is no longer accurate. This can result in keys that stay "pressed" even when released.
To maintain pro-level accuracy, users should perform a "Seasonal Re-Zeroing" or calibration. This involves using the device's web driver or software to reset the baseline magnetic values. We recommend doing this whenever there is a significant change in room temperature or after transporting the keyboard to a tournament.
Magnetic Interference
Because the switches rely on magnets, placing high-powered speakers, unshielded mobile phones, or other magnetic sources directly next to the keyboard can interfere with actuation accuracy. This is a "gotcha" that many players overlook when troubleshooting inconsistent inputs.
Summary of Technical Heuristics
For those looking to optimize their setup, the following heuristics provide a starting point based on common patterns in the professional circuit:
- The 0.2mm Rule: Start at 0.2mm for movement keys. If you find yourself accidentally moving when you mean to stand still, increase in 0.1mm increments until stability is reached.
- The 1.0mm Safety Net: Never set "Game-Changing" abilities (Ultimates/Long Cooldowns) to less than 1.0mm actuation.
- The 8K Saturation Check: To ensure your system is actually utilizing the 8000Hz bandwidth, your mouse movement or keypress frequency must be high enough. For mice, moving at 10 IPS at 800 DPI (or 5 IPS at 1600 DPI) is required to saturate the 8K polling rate.
- Direct-Port Mandate: Always bypass hubs. The 0.125ms advantage is easily lost through the latency of a cheap USB bridge.
By treating the keyboard not as a simple input device, but as a precision-tuned instrument, players can bridge the gap between their reaction time and the game's execution. Advanced actuation tuning is the final frontier of hardware optimization, turning raw potential into measurable competitive advantages.
Disclaimer: This article is for informational purposes only. Modifying hardware firmware or settings can impact system stability. Always refer to the manufacturer's official documentation before making significant changes to polling rates or actuation profiles. High polling rates may significantly increase CPU usage and reduce the battery life of wireless devices.
